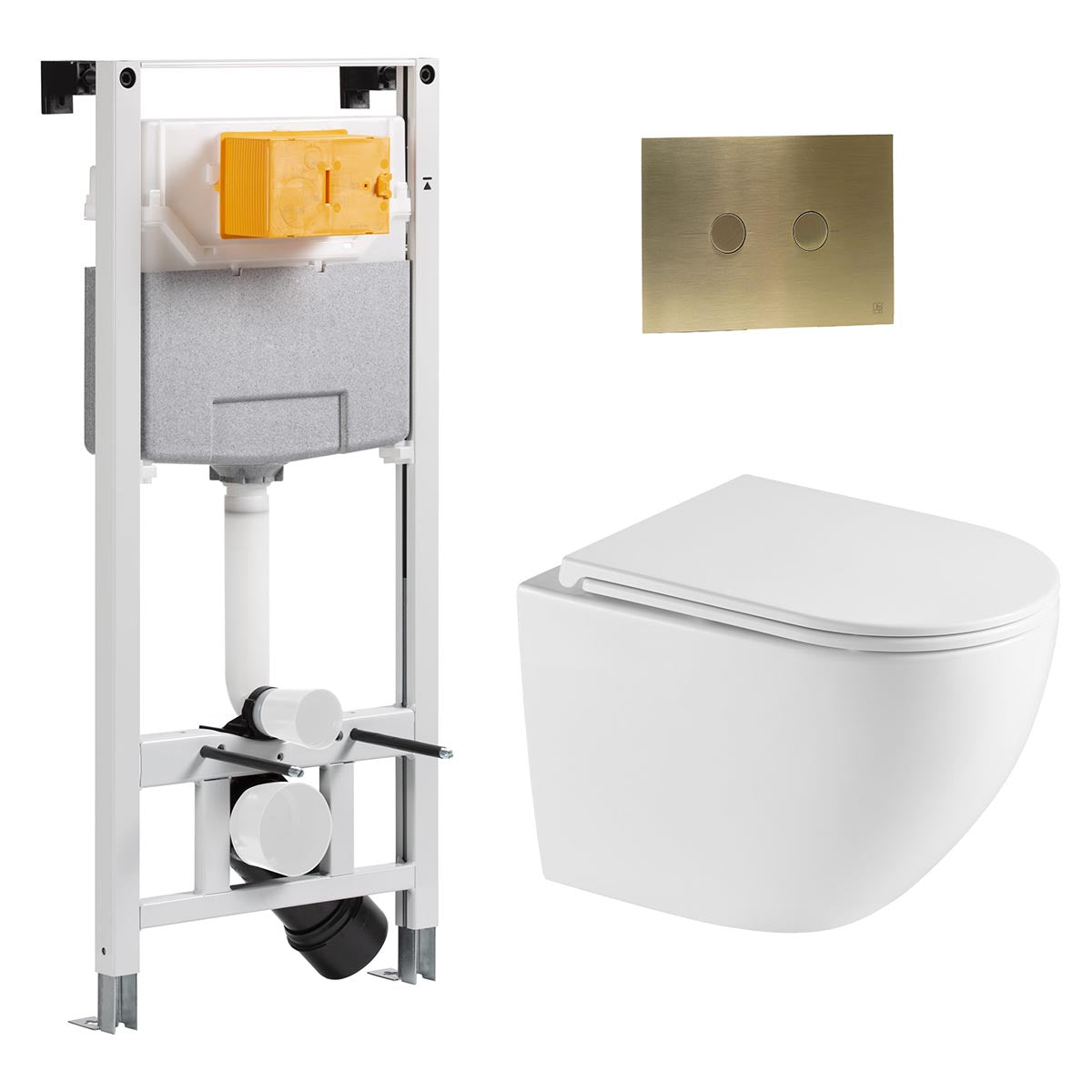

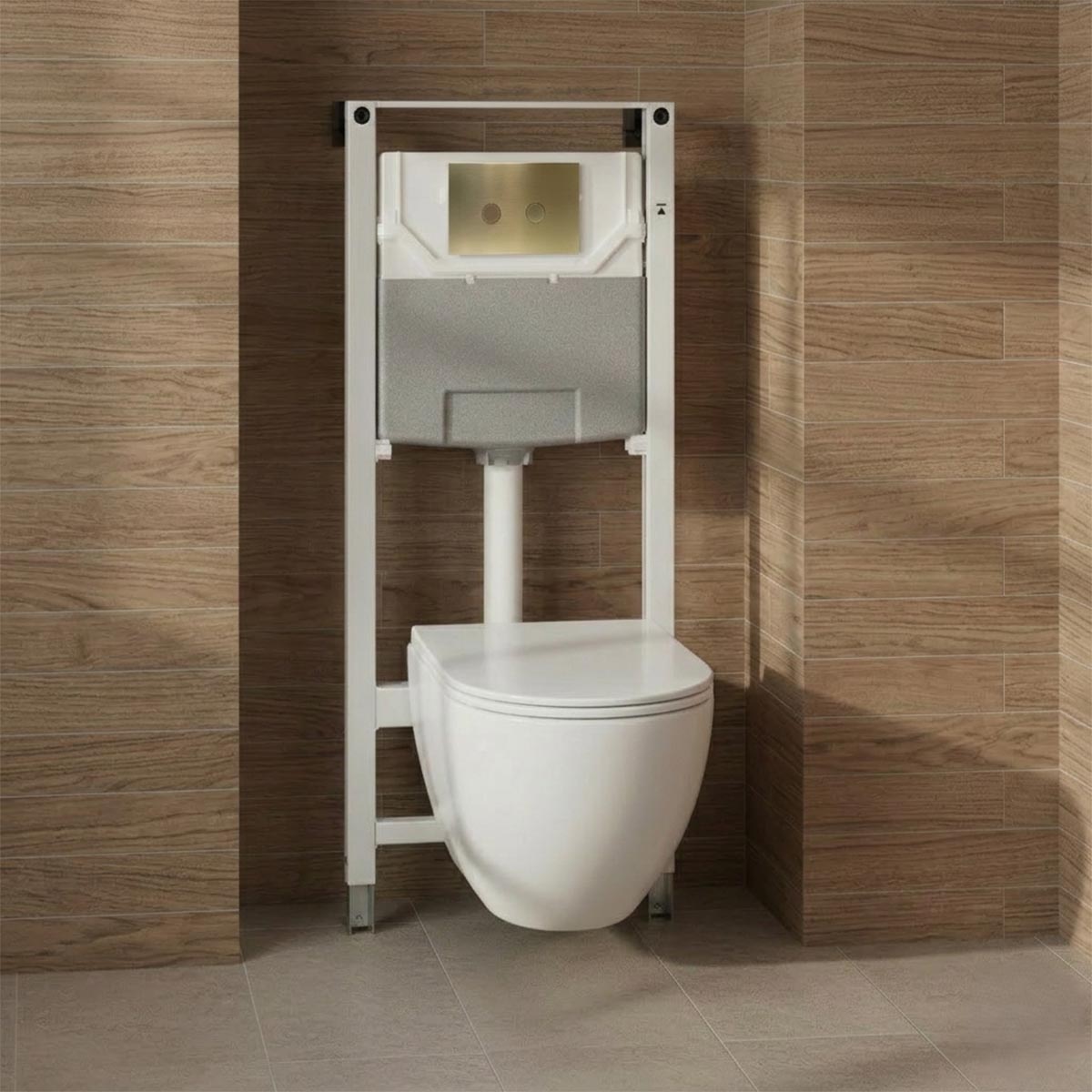

Toilet area solution designed for concealed installation, comprising a white gloss soft-close sandwich seat, pre-wall W.C. frame, integrated cistern and flush plate for a coordinated modern finish.
Its D-shaped wall-hung rimless bowl profile helps reduce concealed internal areas where residue may collect, while tornado flush technology improves water flow for more effective rinsing performance. Manufactured from porcelain, it provides a hard-wearing, non-porous surface suitable for regular use. The rear outlet is configured for connection within the concealed service area, supporting a neat and integrated installation.
Installed behind the wall, the 1200mm pre-wall W.C. frame provides the structural support required for suspended mounting while housing the cistern and associated service connections within the wall zone. Brackets are supplied for secure fixing and accurate alignment, and the W.C. bend enables connection to the discharge system. The integrated cistern incorporates a 3 litre / 6 litre dual flush mechanism, allowing reduced or full flush volume to support improved water efficiency.
The brushed brass flush plate features two pneumatic push buttons for reliable use, with front access for servicing. Once installed, only the seat, and flush plate remain visible, creating a clean built-in look for modern interiors.
Features & Benefits:
Wall Hung Toilet Pan:
- Durable porcelain construction
- White gloss finish for a clean modern look
- D-shaped design
- Rimless bowl for easier cleaning
- Rear outlet for concealed waste connection
- Tornado flush for effective water flow
- Height: 365mm
- Width: 365mm
- Projection: 495mm
- Includes 2-year guarantee, extendable to 15 years on registration
Concealed Cistern & W.C. Frame:
- Hidden installation for a clean built-in look
- Floorstanding pre-wall frame for wall hung toilet installation
- 3L/6L dual flush for water-saving performance
- Includes brackets and W.C. bend
- Front flush installation only
- Height: 1200mm
- Width: 500mm
- WRAS approved
- 2-year guarantee, extendable to 5 years on registration
Flush Plate:
- Dual-button flush plate
- Brushed brass finish
- Smooth pneumatic flush operation
- Height: 145mm
- Width: 215mm
- 2-year manufacturer guarantee
| Product Code | GBWW003RL | GBWCF1200 | GBFPBBR |
|---|---|---|---|
| Type | Wall-Hung Toilet Seat | Concealed Cistern & W.C. Frame | Flush Plate |
| Mount Type | Wall Mounted | Floor Mounted | Wall Mounted |
| Shape | D-Shaped | Rectangular | Rectangular |
| Material | Porcelain | Metal | Brass |
| Finish | White Gloss | N/A | Brushed Brass |
| Colour | White | N/A | Gold |
| Style | Modern | Modern | Modern |
| Height (mm) | 365 | 1200 | 145 |
| Width (mm) | 365 | 500 | 215 |
| Manufacturer Guarantee | 2-year guarantee, extendable to 15 years on registration | 2-year guarantee, extendable to 5 years on registration | 2 years guarantee |
