0.82m Pre-wall Freestanding W.C Frame & Wortex Matt Black Rimless Toilet with Seat & Brushed Brass Flush Plate

Concealed toilet configuration developed for contemporary bathroom applications, comprising a matt black soft-close sandwich seat, pre-wall W.C. support frame, integrated cistern and flush plate.

The pan is manufactured from porcelain to deliver a durable, easy-clean and non-porous surface suited to everyday use. Its D-shaped rimless bowl design promotes a compact modern profile while reducing areas where build-up may occur. Tornado flush technology improves water distribution around the bowl for more effective rinsing performance. A rear outlet connection allows the waste run to be routed within the concealed installation zone for a cleaner finished result.

The support frame is intended for floor-mounted pre-wall installation and provides the structural fixing required for the suspended pan. It also houses the concealed cistern and associated service components within the wall area, helping maintain a neat and uncluttered appearance. Supplied brackets assist with secure positioning, while the W.C. bend enables connection to the discharge system. Integrated within the frame, the cistern is fitted with a 3 litre / 6 litre dual flush mechanism to support reduced and full-volume operation. This allows more controlled water use while maintaining reliable flushing performance in daily use.

The brushed brass flush plate acts as the external operating interface for the cistern. Its rectangular form is fitted with two pneumatic push buttons for accurate flush control and provides front access for routine servicing and internal adjustment.

After installation, only the wall-hung pan and flush plate remain visible, creating a streamlined built-in appearance suited to modern residential and commercial bathroom schemes.

Features & Benefits:

Wall Hung Toilet Pan:

• D-shaped pan with a modern matt black finish
• Made from durable porcelain
• Rimless bowl for easier cleaning
• Tornado flush for effective rinsing
• Rear outlet for concealed waste connection
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• 2-year guarantee, extendable to 15 years on registration

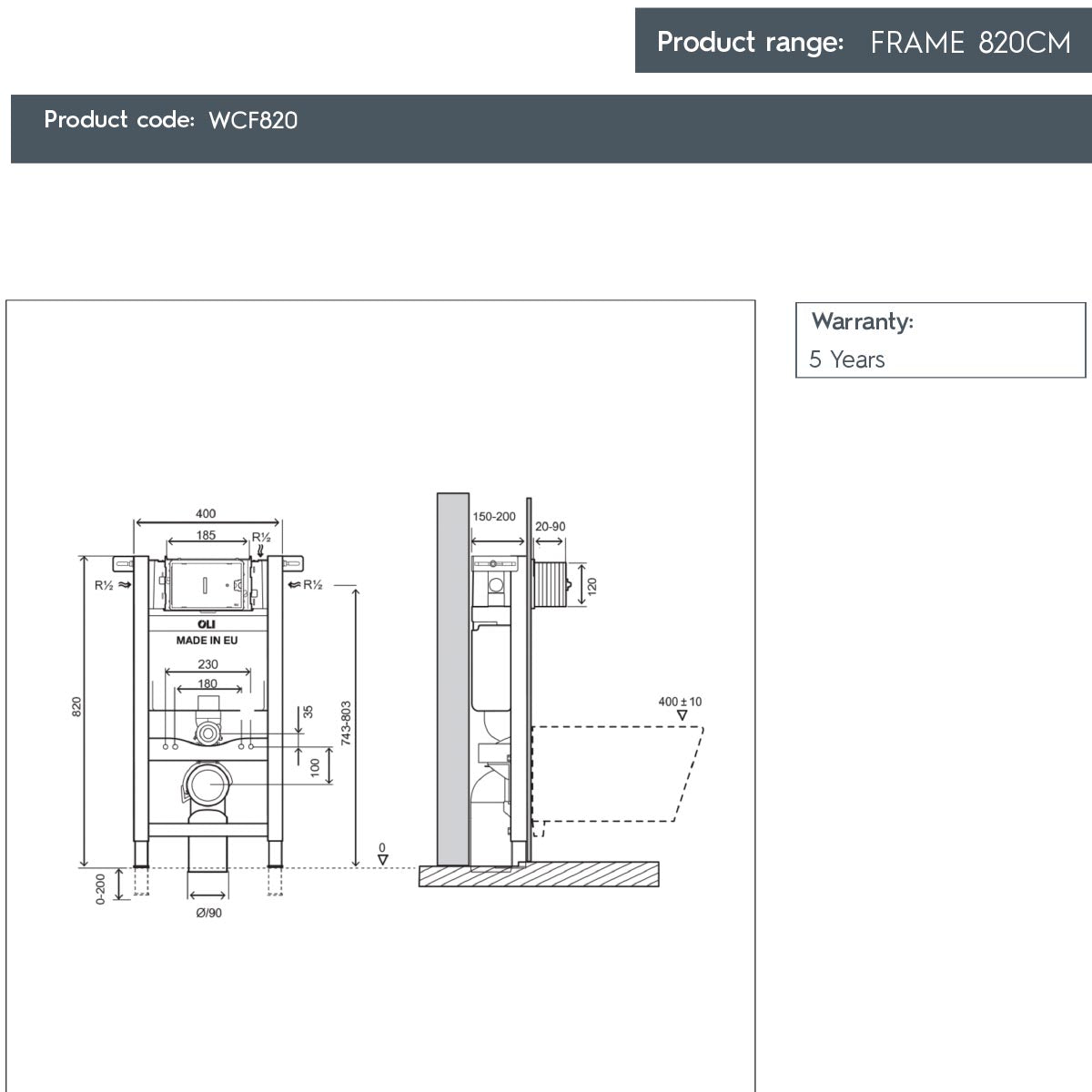

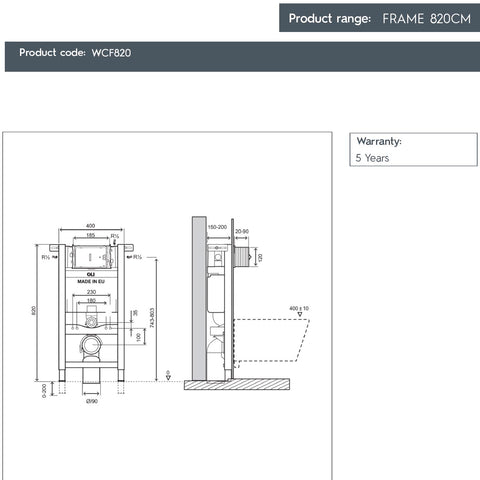

Concealed Cistern & W.C. Frame:

• Slim floorstanding pre-wall frame
• Height: 820mm
• Width: 400mm
• Designed for wall hung toilet installation
• Concealed cistern for a clean, built-in look
• Includes brackets and W.C. bend
• Dual flush 3L/6L cistern
• Suitable for front or top access
• WRAS approved
• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Brushed brass finish
• Dual-button flush control
• Pneumatic operation for reliable performance
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
