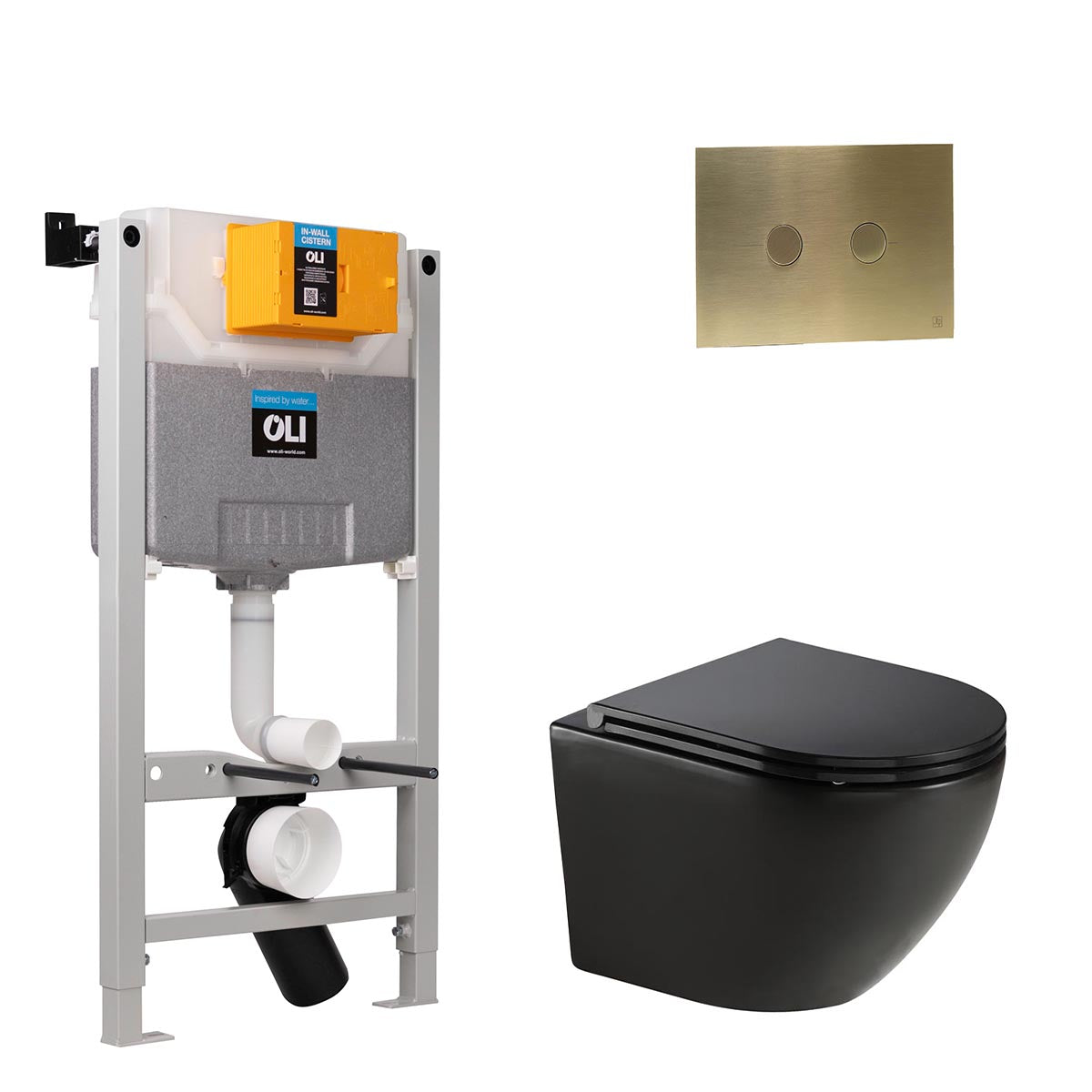

Configured for modern concealed bathroom installation, this set includes a soft-close seat, a 980mm pre-wall W.C. frame, integrated cistern and flush plate, delivering a coordinated built-in solution.
The wall-hung pan is manufactured from porcelain to provide a durable, non-porous surface suited to regular use and easy maintenance. Its D-shaped rimless bowl design supports a compact profile and helps reduce concealed internal areas where build-up may occur. Tornado flush technology improves water flow around the bowl for more effective rinsing, while the rear outlet enables connection within the concealed service area for a cleaner finished appearance.

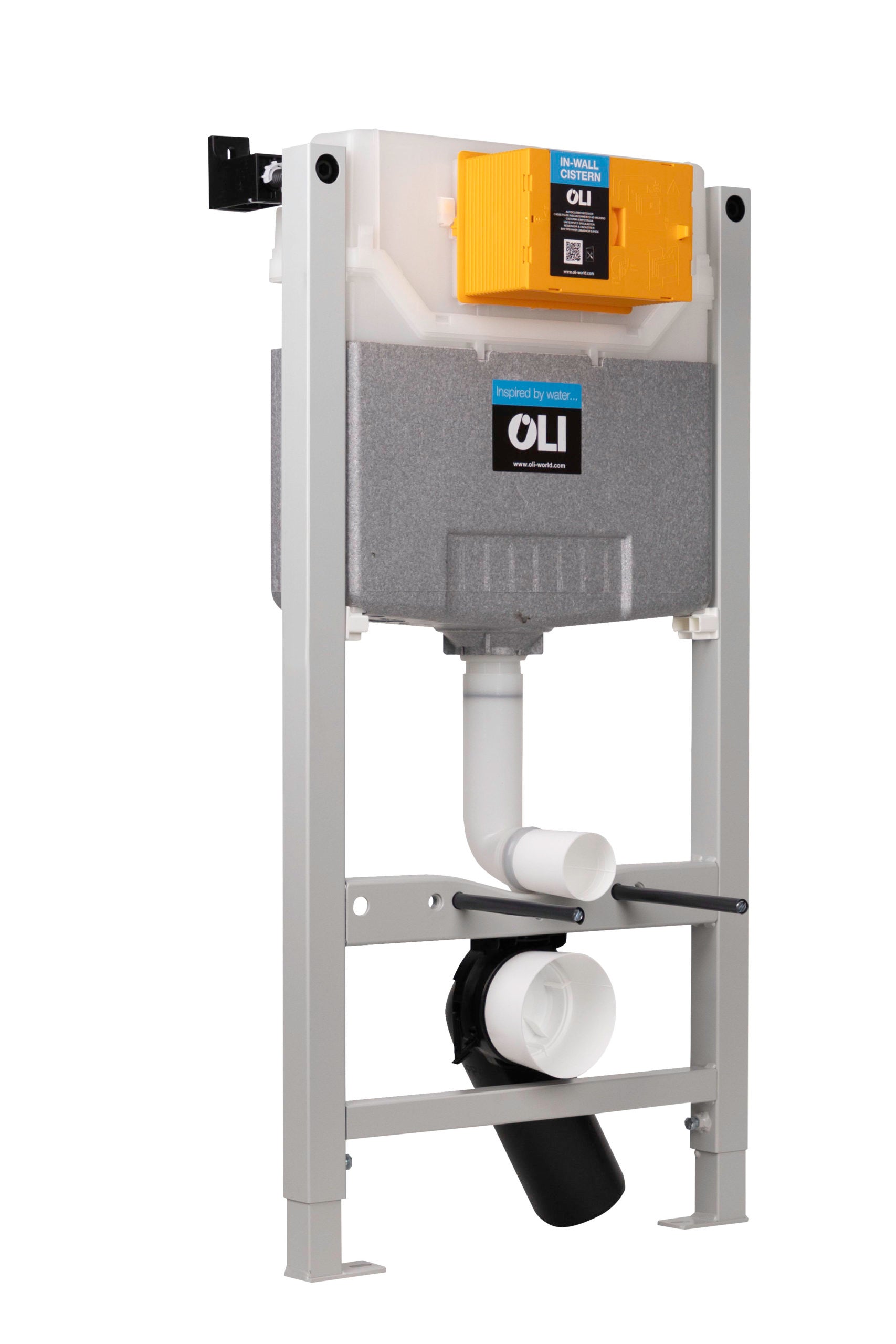

The 980mm floorstanding W.C. frame supports the wall-hung pan and conceals the cistern within the wall. Its compact height makes it perfect for spaces with limited vertical room, while included brackets ensure secure installation. Supplied with a W.C. bend for connection to the concealed waste system, the integrated cistern also features a 3 litre / 6 litre dual flush for efficient water use.
Finished in brushed brass, the flush plate forms the visible control interface for the cistern. Its rectangular design incorporates two pneumatic push buttons for reliable actuation and also provides front access for servicing and maintenance.

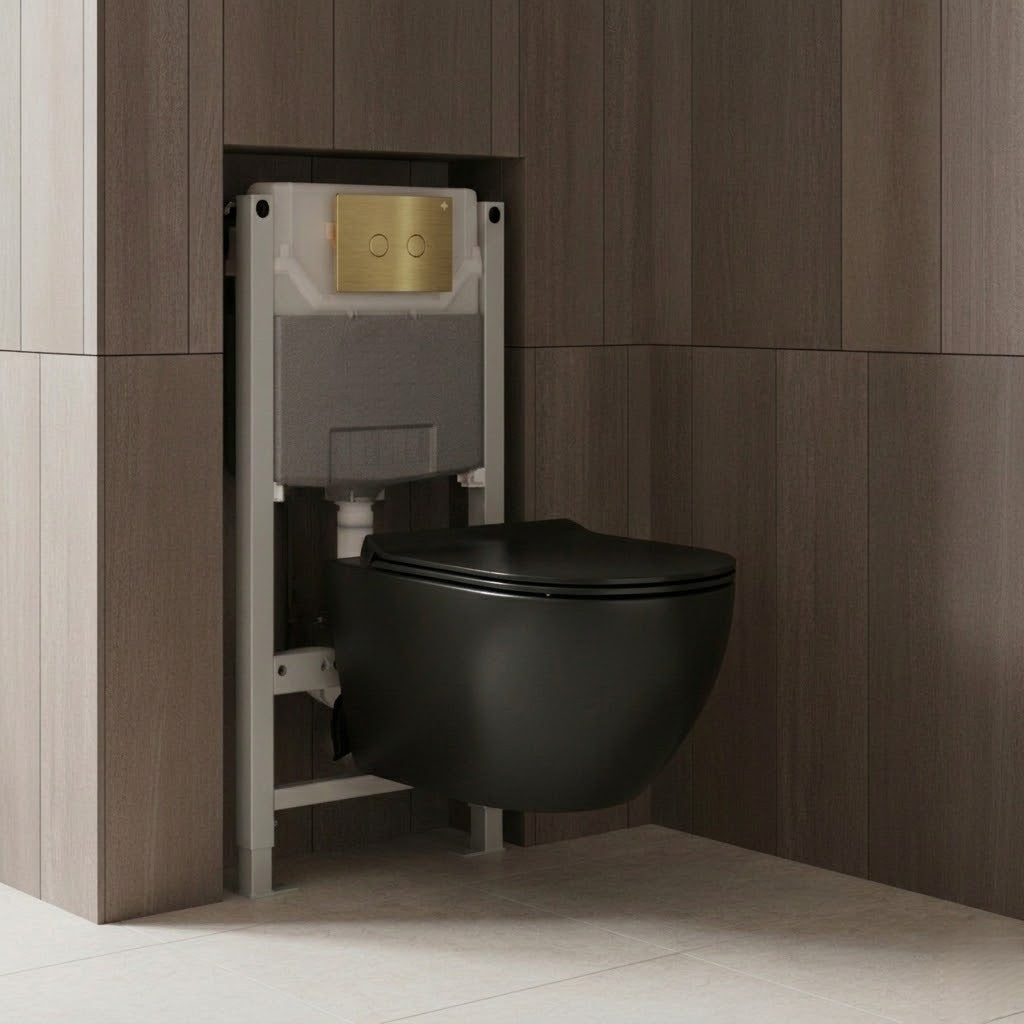

Once fitted, only the pan and flush plate remain visible, creating a neat, built-in result suited to modern bathroom interiors.
Features & Benefits:
Wall Hung Toilet Pan:
- D-shaped design with a matt black finish
- Made from durable porcelain
- Rimless bowl for easier cleaning
- Tornado flush for efficient rinsing
- Rear outlet for concealed waste connection
- Height: 365mm
- Width: 365mm
- Projection: 495mm
- 2-year guarantee, extendable to 15 years on registration
Concealed Cistern & W.C. Frame:
- Floorstanding pre-wall frame for wall hung toilet installation
- Concealed cistern for a neat, built-in finish
- Includes brackets and W.C. bend
- Dual flush 3L/6L cistern
- Front flush installation only
- WRAS approved
- Height: 980mm
- Width: 500mm
- 2-year guarantee, extendable to 5 years on registration
Flush Plate:
- Brushed brass finish
- Dual-button design
- Pneumatic flush operation
- Height: 145mm
- Width: 215mm
- Includes 2-year manufacturer guarantee
| Product Code | GBBLW003RL | GBWCF980 | GBFPBBR |
|---|---|---|---|
| Type | Wall-Hung Toilet Seat | Concealed Cistern & W.C. Frame | Flush Plate |
| Mount Type | Wall Mounted | Floor Mounted | Wall Mounted |
| Shape | D-Shaped | Rectangular | Rectangular |
| Material | Porcelain | Metal | Brass |
| Finish | Matt Black | N/A | Brushed Brass |
| Colour | Black | N/A | Gold |
| Style | Modern | Modern | Modern |
| Height (mm) | 365 | 980 | 145 |
| Width (mm) | 365 | 500 | 215 |
| Manufacturer Guarantee | 2-year guarantee, extendable to 15 years on registration | 2-year guarantee, extendable to 5 years on registration | 2 years guarantee |
