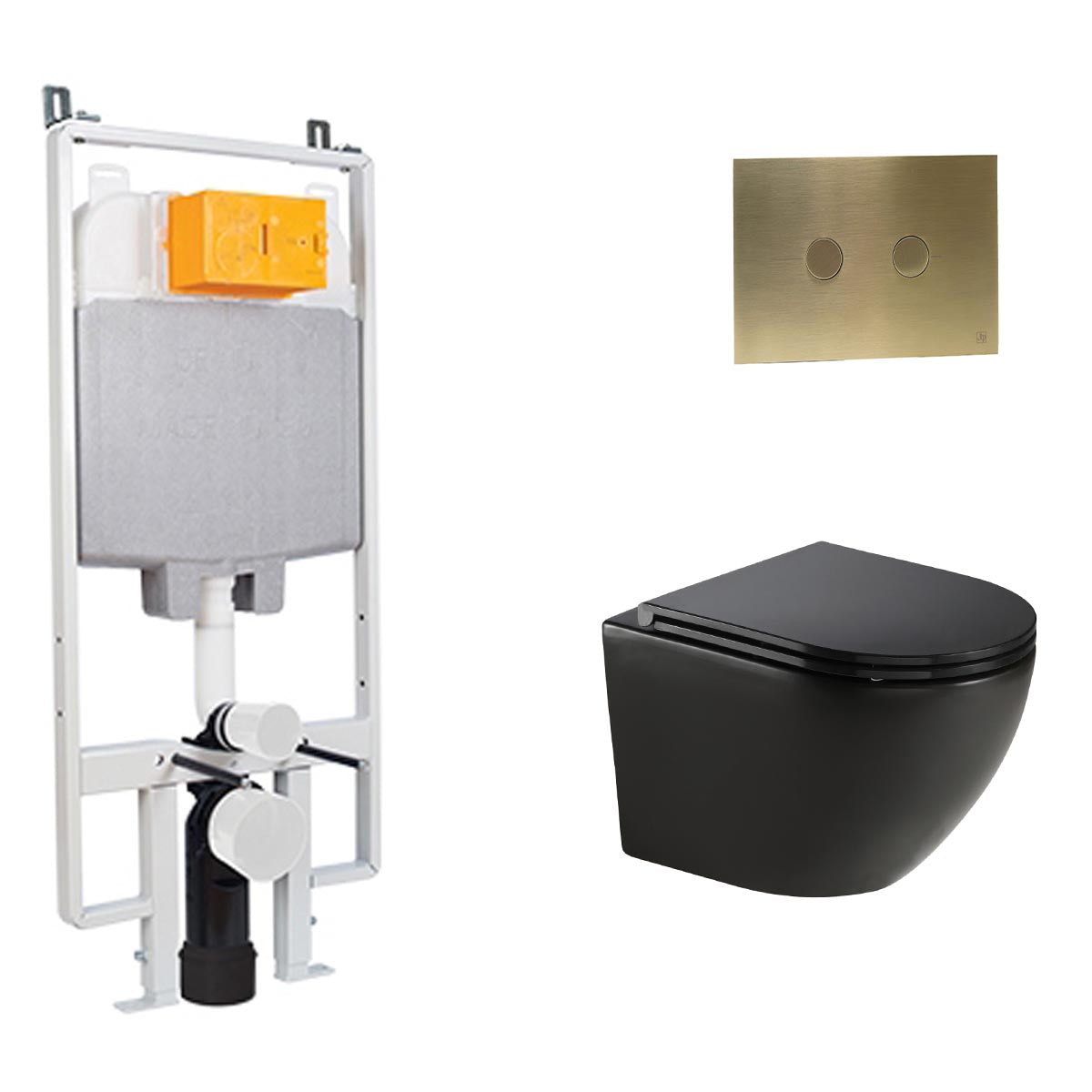

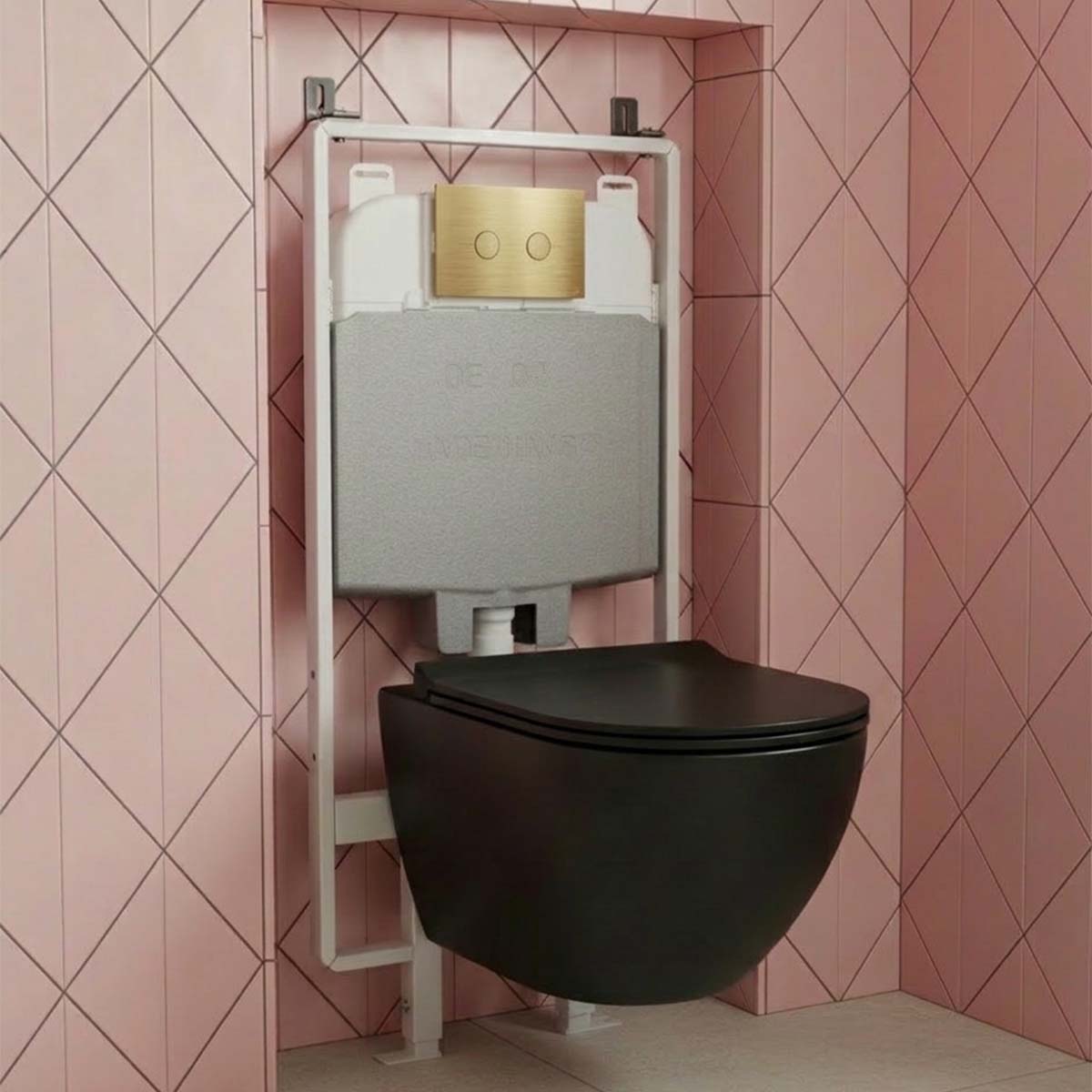

1.2m Slim Concealed Wall Hung WC Frame with Cistern & Wortex Matt Black Rimless Toilet with Seat & Brushed Brass Flush Plate

This concealed WC frame with cistern and toilet for modern bathroom interiors, incorporates a matt black wall hung toilet with seat, slim 1.2 m floor-mounted pre-wall support frame, integrated cistern and brushed brass flush plate.

The wall-hung pan is produced from porcelain and its matt black finish adds a strong contemporary character, while the rimless bowl structure helps limit areas where residue may gather. Tornado flushing improves internal bowl coverage by directing water more efficiently during operation. A rear outlet connection allows the waste route to be contained within the concealed installation zone for a cleaner completed appearance.

The slim 1200mm support frame is built for pre-wall applications and provides the required load-bearing structure for the suspended pan. It contains the cistern and associated connection points within a compact assembly suited to concealed installation. Brackets and W.C. bends are included to support accurate setup and connection to the discharge line. The cistern is configured with a 3 litre / 6 litre dual-flush system, allowing controlled water release according to demand.

The brushed brass flush plate provides the external control interface and introduces a contrasting metallic finish to the overall specification. Its rectangular faceplate is fitted with two pneumatic push buttons for dependable operation of the dual-flush function, while also serving as the access point for maintenance of internal cistern components. Following installation, the visible elements are reduced to the pan and flush plate, resulting in a neat, built-in presentation aligned with contemporary bathroom design.

Features & Benefits:

Wall Hung Toilet Pan:

• Matt black finish for a bold modern look
• D-shaped design
• Durable porcelain construction
• Tornado flush for efficient rinsing
• Rimless bowl for easier cleaning
• Rear outlet for concealed waste connection
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• 2-year guarantee, extendable to 15 years on registration

Concealed Cistern & W.C. Frame:

• Slim floorstanding pre-wall frame
• Designed for wall hung toilet installation
• Concealed cistern for a neat finish
• WRAS approved
• Includes brackets and W.C. bend
• Dual flush 3L/6L cistern
• Front flush installation
• Height: 1200mm
• Width: 500mm
• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Finished in brushed brass
• Dual-button design
• Pneumatic operation for smooth flushing
• Height: 145mm
• Width: 215mm
• Manufacturer guarantee of 2-years
