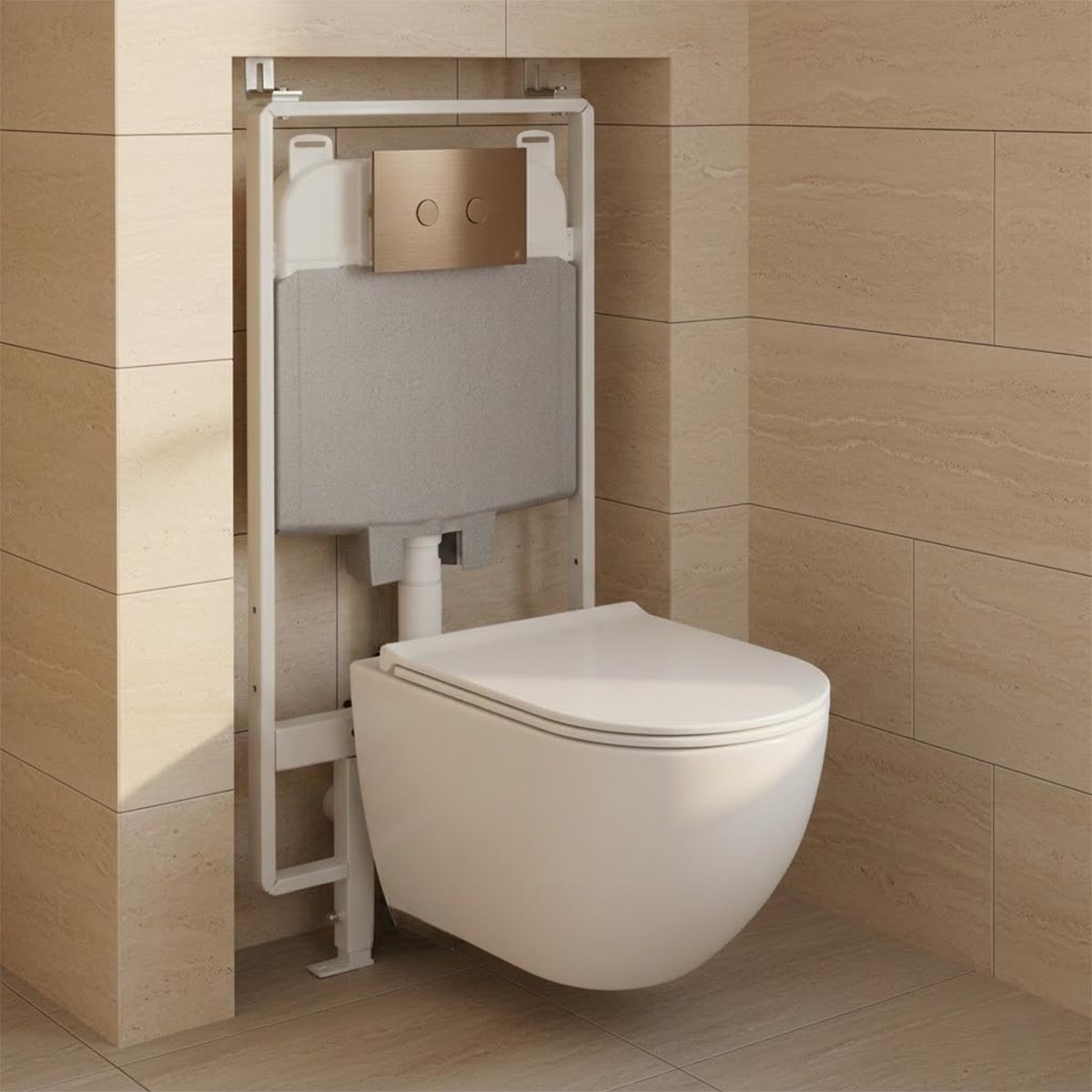

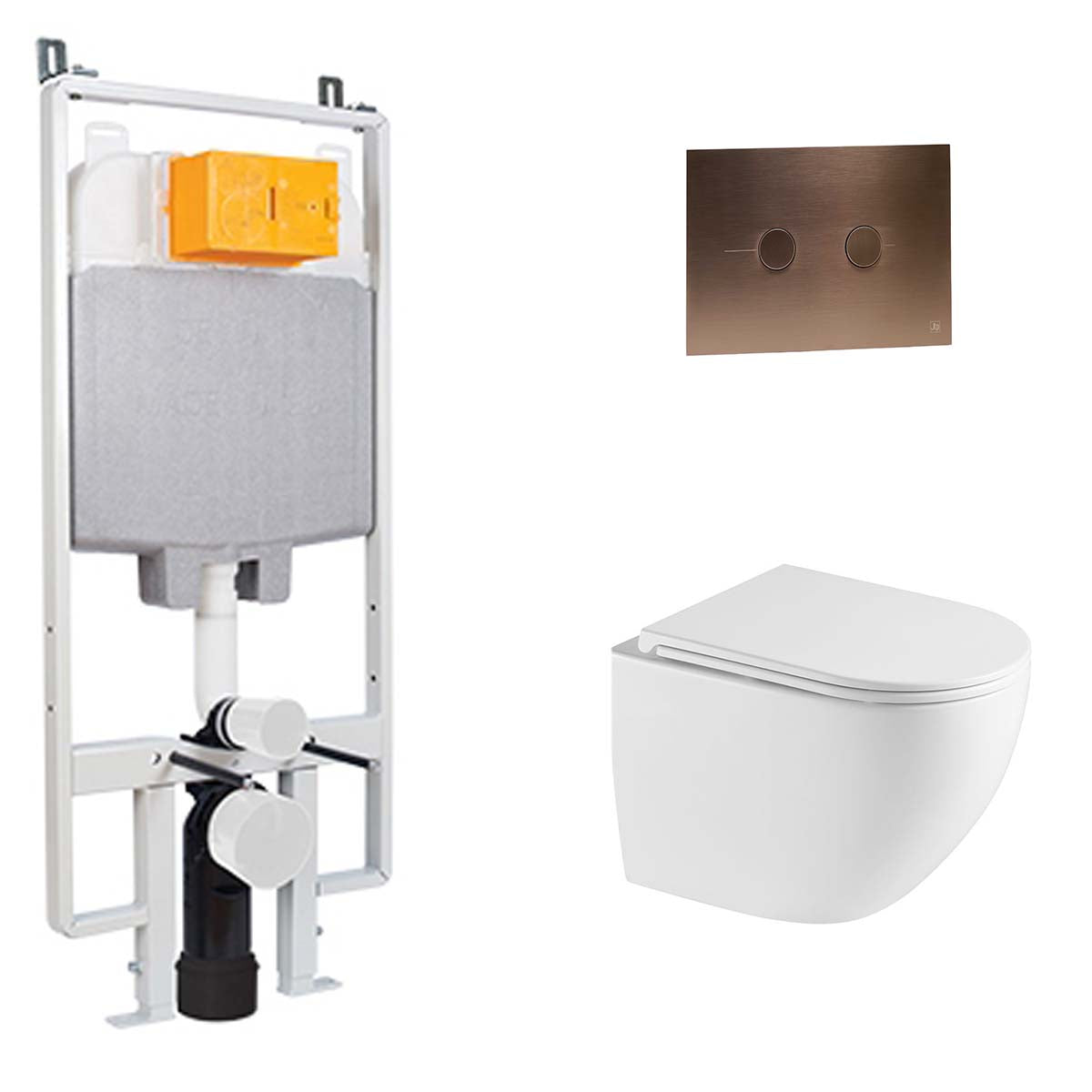

1.2m Slim Concealed WC Frame with Cistern & Wortex White Rimless Toilet with Seat & Bronze Flush Plate

For modern concealed bathroom layouts, the toilet set combines a white gloss D-shaped seat, a 1.2m pre-wall W.C. frame, integrated cistern and flush plate in one coordinated installation.

Constructed from porcelain, the wall-hung pan offers a durable, easy-clean surface for daily use. Its rimless bowl design supports improved hygiene, while tornado flush technology enhances rinsing performance. A soft-close sandwich seat adds comfort and quieter closing, and the rear outlet allows a neat concealed connection.

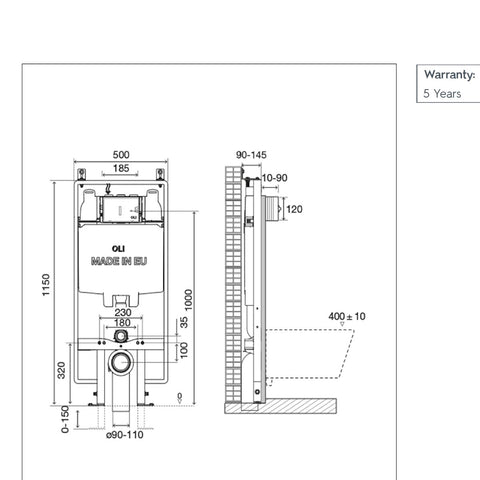

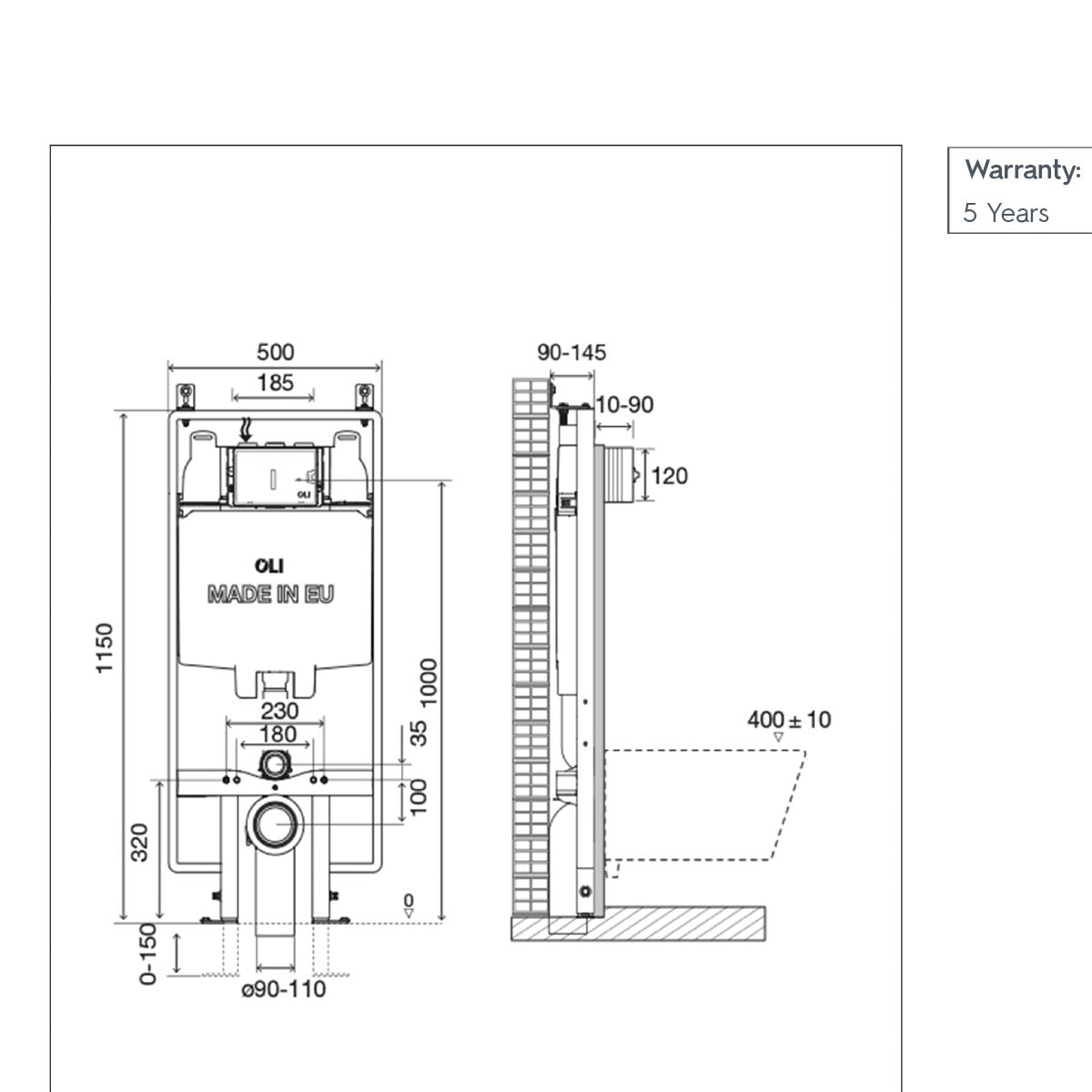

The 1200mm floorstanding frame is engineered to provide reliable structural support for suspended installation while housing the cistern and associated connections behind the wall. Its full-height construction allows secure load transfer and stable fixing, while supplied brackets assist with accurate alignment. A W.C. bend is included for connection to the concealed waste line.

Integrated within the frame, the cistern operates with a 3 litre / 6 litre dual flush mechanism, allowing a choice between reduced and full flush volumes to improve water efficiency in daily use. The brushed bronze flush plate forms the visible operating interface, featuring a rectangular faceplate with two pneumatic push buttons for dependable actuation and front access for servicing and maintenance.

Once installed, only the pan, seat and flush plate remain visible, creating a neat built-in appearance suited to contemporary bathroom interiors.

Features & Benefits:

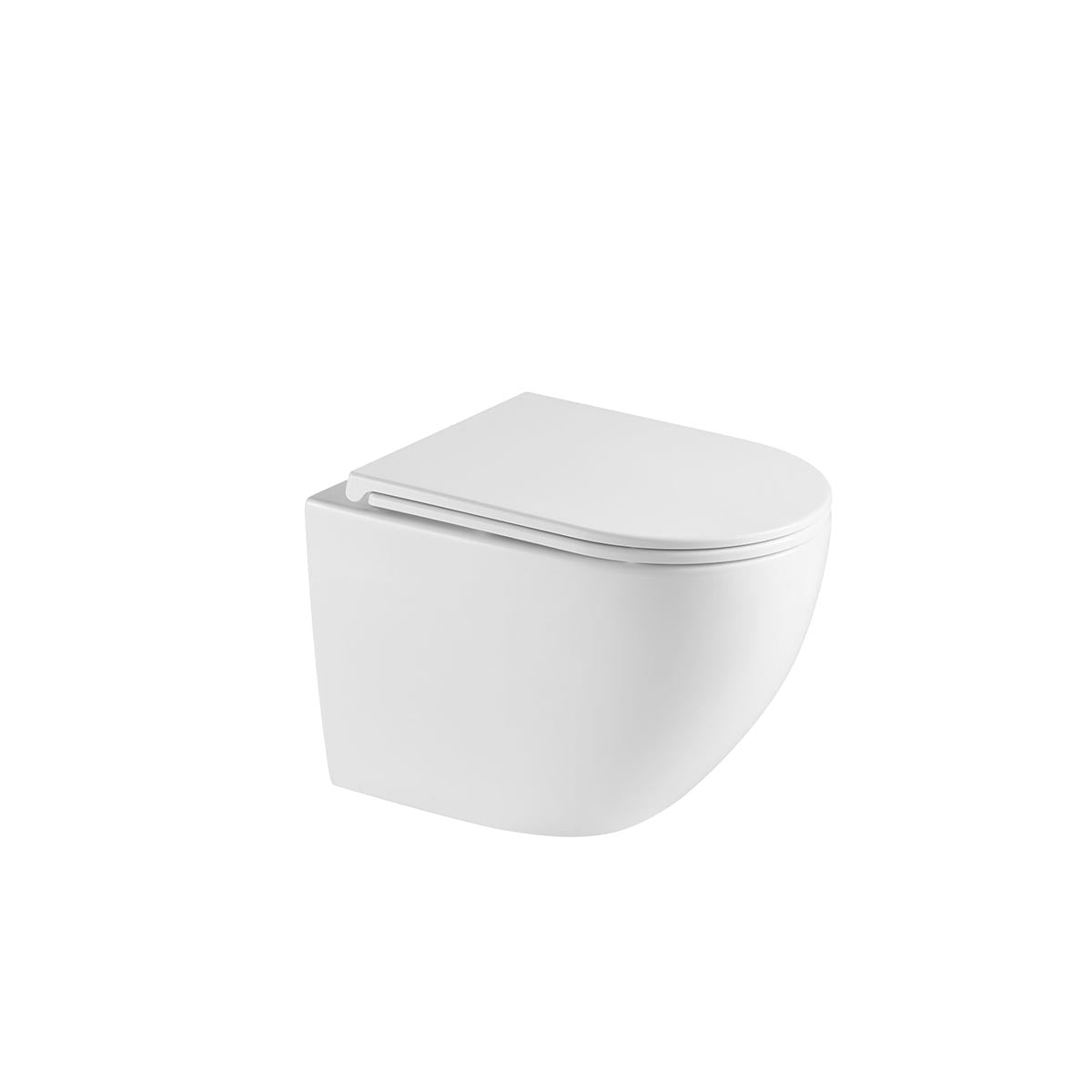

Wall Hung Toilet Pan:

• White gloss finish for a fresh modern look
• D-shaped design
• Made from durable porcelain
• Rimless bowl for easier cleaning
• Tornado flush technology
• Rear outlet for concealed waste connection
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• 2-year guarantee, extendable to 15 years on registration

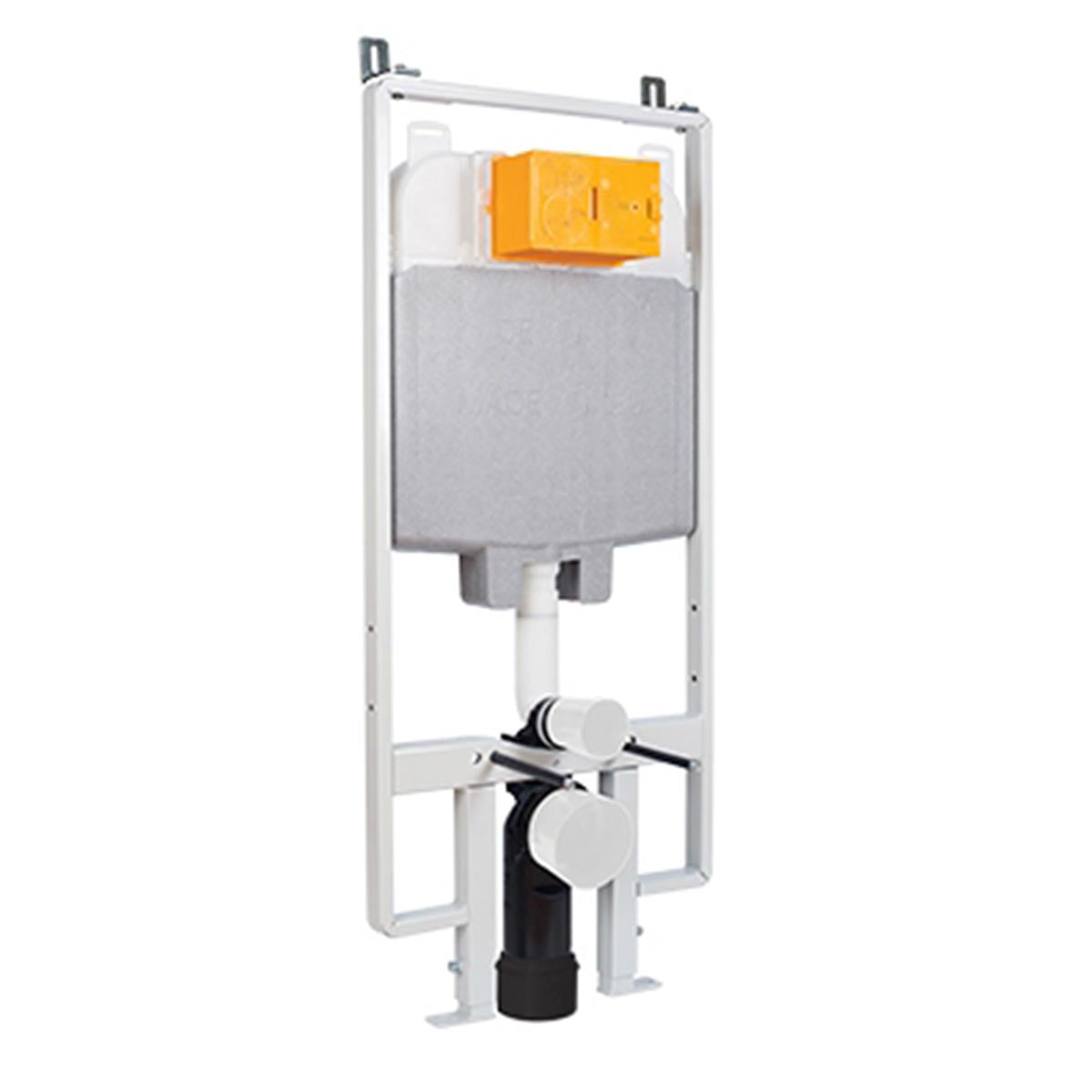

Concealed Frame:

• Slim floorstanding pre-wall frame
• Suitable for wall hung toilet installation
• Hidden setup for a neat built-in appearance
• Includes brackets and W.C. bend
• Front flush installation only
• 3L/6L dual flush for water-saving performance
• WRAS approved
• Height: 1200mm
• Width: 500mm
• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Brushed bronze finish for a warm stylish contrast
• Dual-button design
• Pneumatic operation for smooth flushing
• Height: 145mm
• Width: 215mm
• Manufacturer guarantee of 2-year
