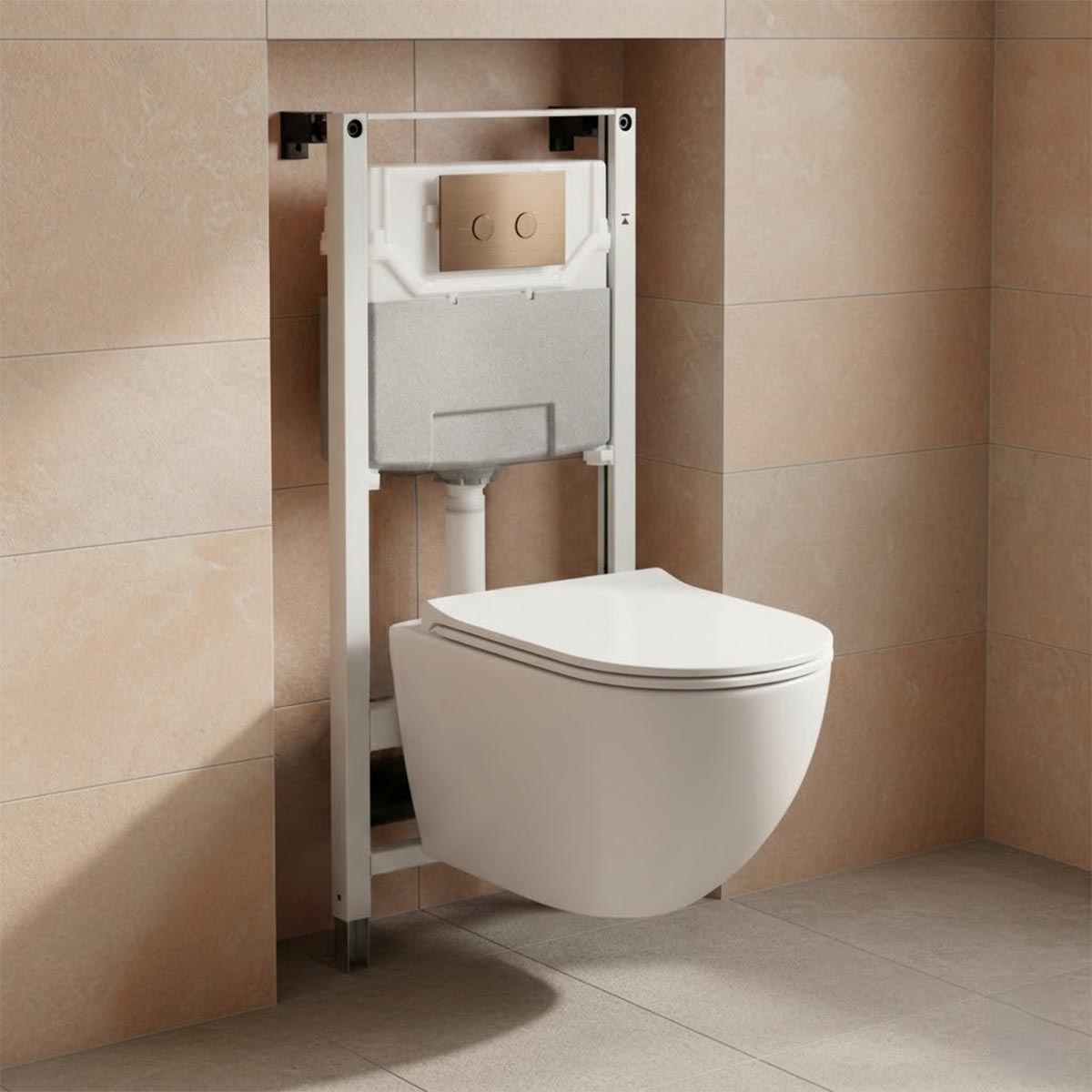

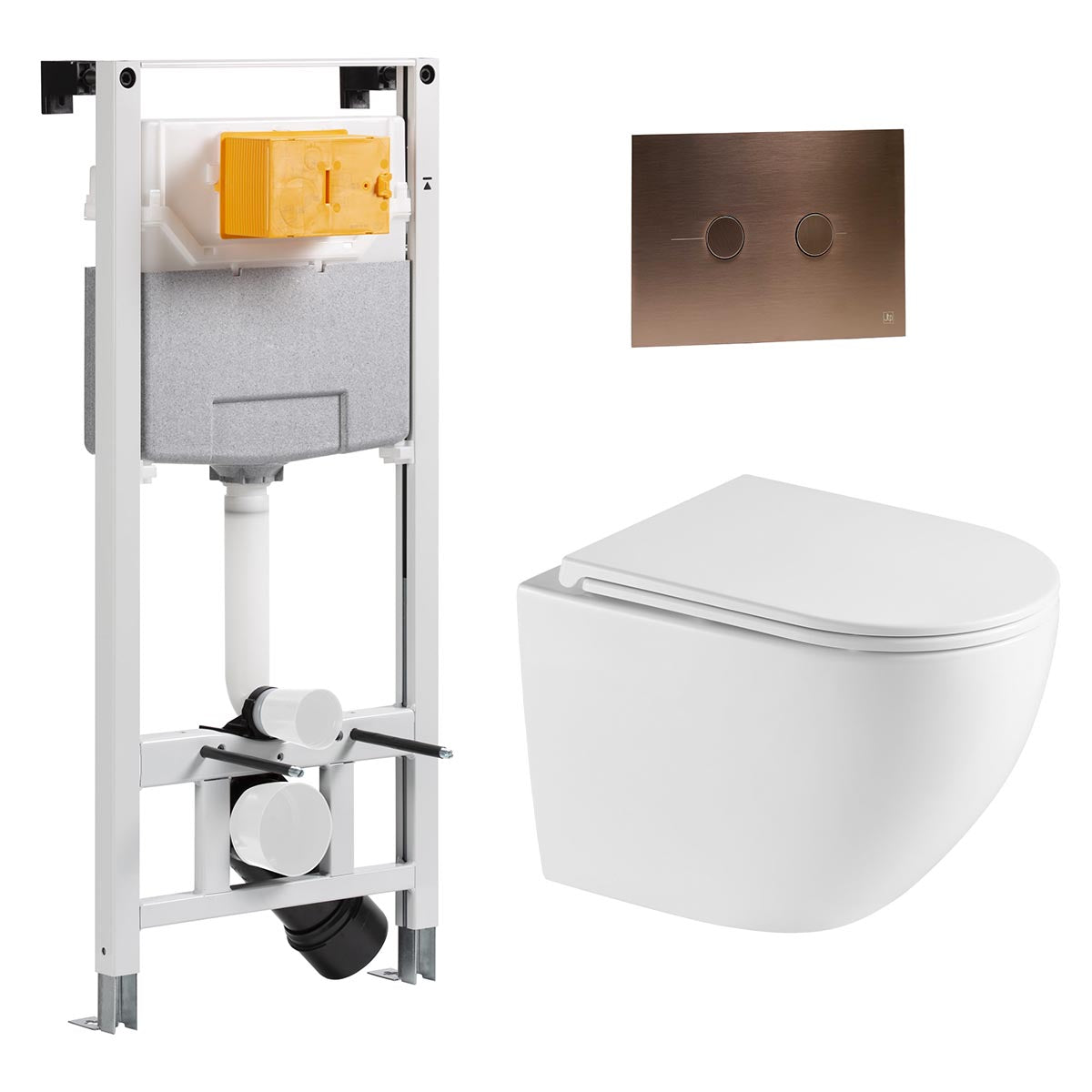

1.2m Wall Hung WC Frame with Cistern & Wortex White Rimless Toilet with Seat & Bronze Flush Plate

Bathroom toilet set developed for concealed installation, combining a white gloss soft-close sandwich seat, floorstanding W.C. frame, integrated cistern and flush plate within one coordinated system.

Constructed from porcelain, the wall-hung pan offers a durable, non-porous surface suitable for regular use and easy cleaning. Its D-shaped rimless bowl profile helps minimise concealed areas where build-up may occur, while tornado flush technology improves internal water distribution for more effective rinsing. The rear outlet is arranged for connection within the concealed service area, helping maintain a clean finished appearance.

The 1200mm pre-wall W.C. frame provides the structural support required for suspended installation and accommodates the cistern together with associated service connections behind the wall. Supplied brackets assist with secure fixing and alignment, while the W.C. bend enables connection to the discharge line. The integrated cistern operates with a 3 litre / 6 litre dual flush mechanism, allowing either reduced or full-volume discharge to support efficient water use.

The brushed bronze flush plate serves as the visible operating interface for the system. Its rectangular faceplate is fitted with two pneumatic push buttons for reliable actuation and also provides front access for servicing and maintenance.

After installation, the exposed elements are limited to the pan, seat and flush plate, creating a neat built-in finish suited to contemporary bathroom settings.

Features & Benefits:

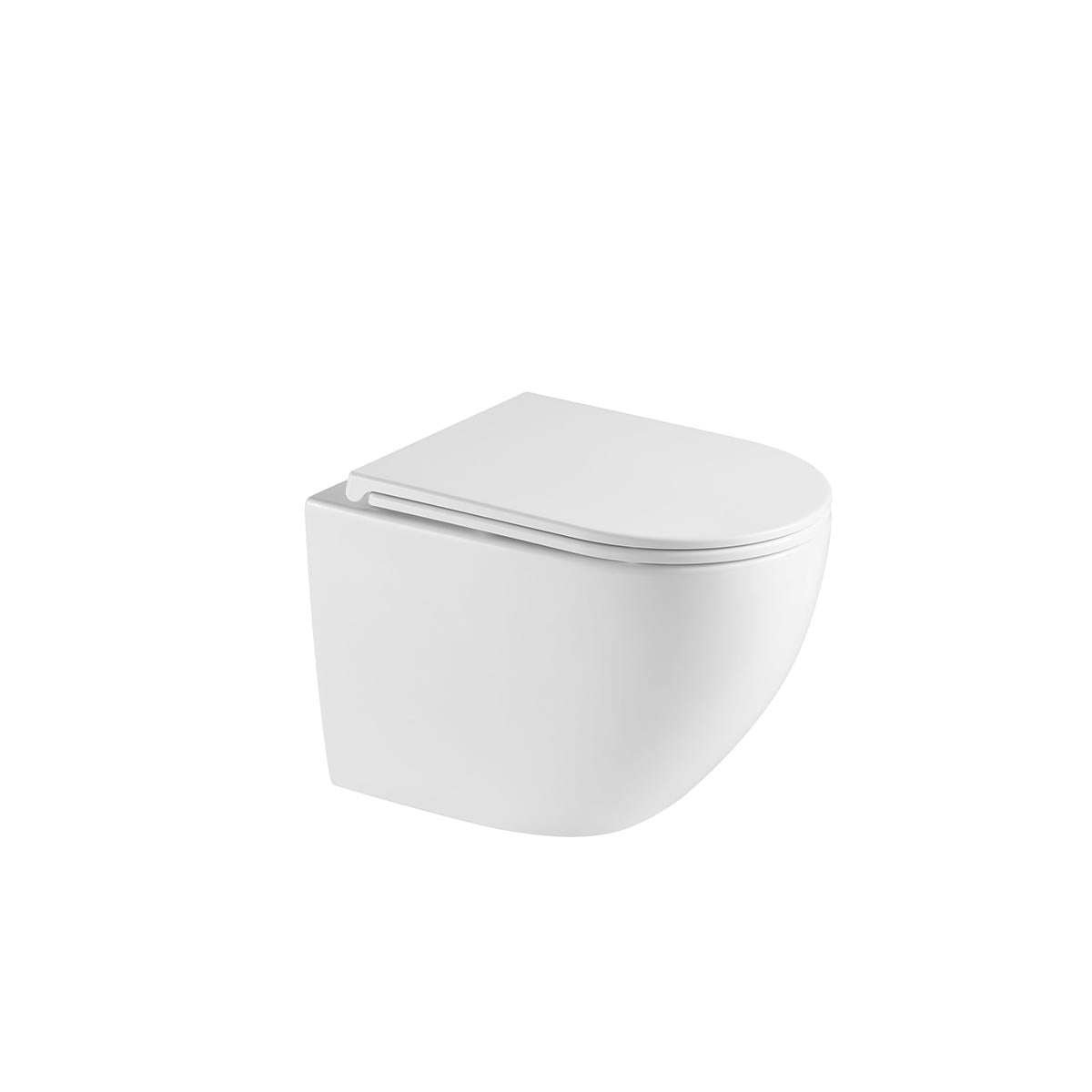

Wall Hung Toilet Pan:

• White gloss finish for a clean contemporary look
• D-shaped design
• Made from durable porcelain
• Tornado flush for efficient rinsing
• Rimless bowl for easier cleaning
• Rear outlet for concealed waste connection
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• 2-year guarantee, extendable to 15 years on registration

Concealed Cistern & W.C. Frame

• Height: 1200mm
• Width: 500mm
• Floorstanding pre-wall frame for wall hung toilet installation
• Hidden installation for a neat built-in finish
• Includes brackets and W.C. bend
• Front flush installation only
• 3L/6L dual flush for water-saving use
• WRAS approved
• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Brushed bronze finish
• Dual-button design
• Pneumatic flush operation for smooth performance
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
