Brushed Brass 2-Outlet Concealed Shower Valve Mixer - Vertical

Keeping the pipework out of sight gives this traditional 2 outlet thermostatic shower valve a clean, considered look, while still allowing two separate shower functions to be controlled from one place. Each lever operates its own outlet, so the valve can be used with a shower head and arm and a shower riser rail, both available separately.

Temperature is adjusted through the central crosshead, which blends the hot and cold supplies until the preferred setting is reached. From there, the thermostatic mechanism helps regulate the mixed water so it remains more consistent while showering, reducing the need for repeated adjustment.

The brushed brass concealed shower mixer valve measures 325mm high by 160mm wide with a projection of 187mm. Its vertical layout keeps the controls easy to reach, with 80mm spacing between the handles, while G 3/4 connections link the concealed body to the plumbing. A minimum water pressure of 0.5 bar is required for operation.

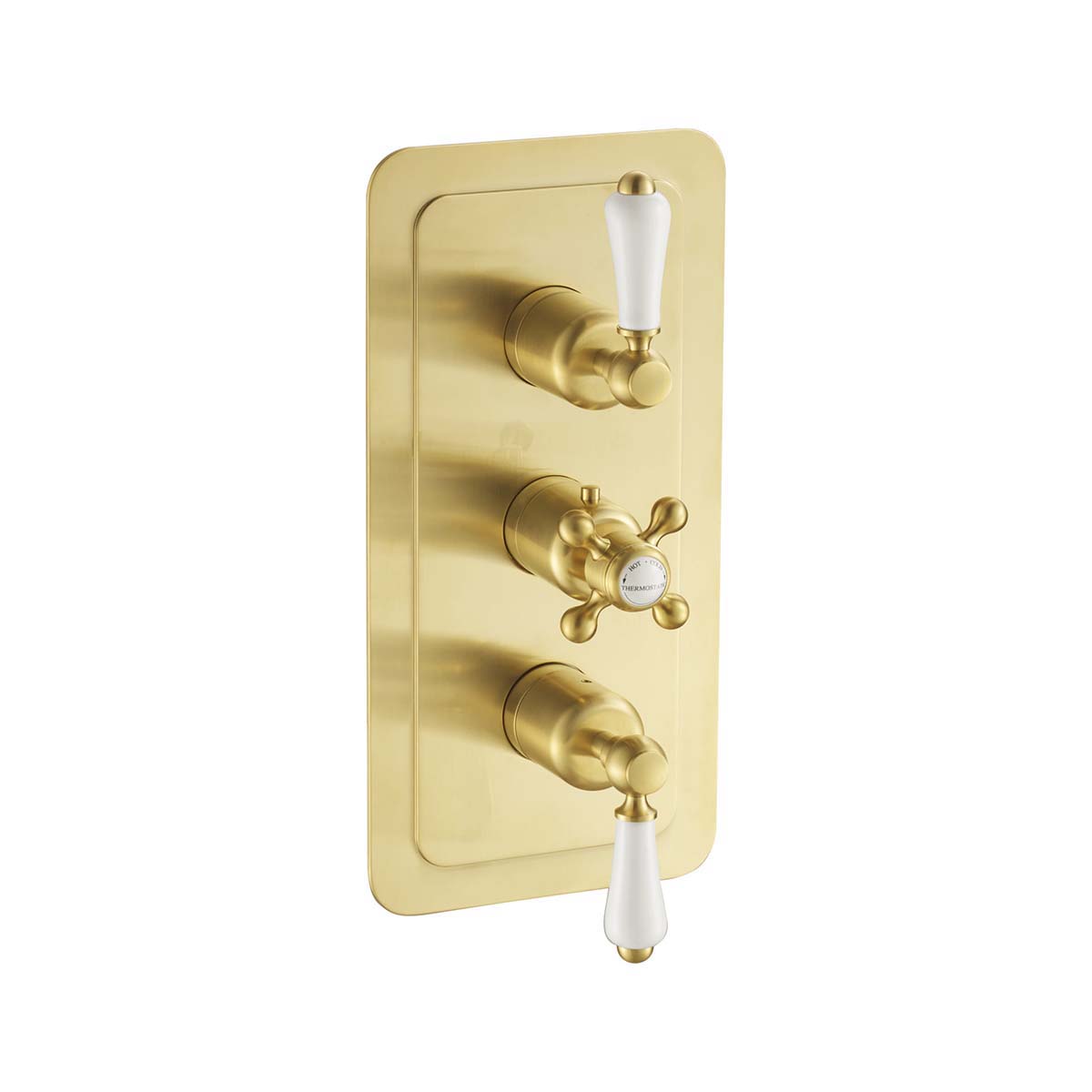

Made from brass, the visible backplate combines two lever handles with a traditional crosshead, all detailed with white ceramic accents for a refined period finish. The shower valve is also WRAS approved, providing added reassurance when planning the installation.

Features & Benefits:

• Traditional, brushed brass finish
• Solid brass construction with white ceramic detailing
• Concealed 2-outlet thermostatic valve
• Triple controls with twin levers and central crosshead
• Separate outlet operation for flexible shower setups
• Thermostatic control helps stabilise water temperature
• Height: 325mm
• Width: 160mm
• Projection: 187mm
• Handle spacing: 80mm
• G3/4" threaded connections
• WRAS approved
• Minimum water pressure: 0.5 bar
• 15-years of manufacturing guarantee

Flow Rate:

• 0.2Bar: 12L/min
• 0.5Bar: 17L/min
• 1Bar: 21L/min
• 2Bar: 28.5L/min
• 3Bar: 36L/min
